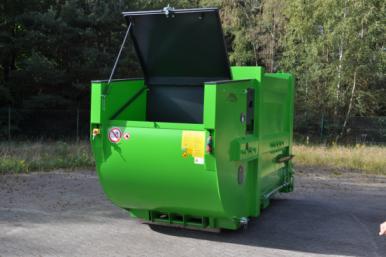

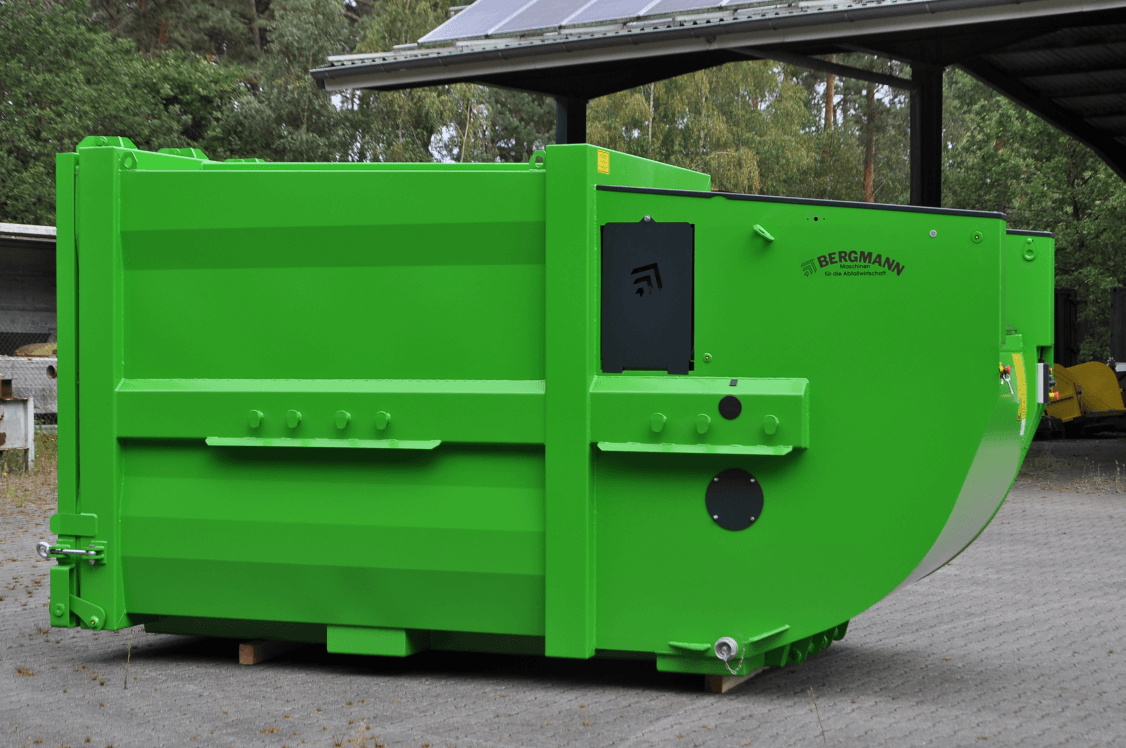

Bergmann MPB 414 Wet Waste Compactor

The MPB 414 is a replacement model for the MPB 405 wet waste compactor.

The 414 portable Wet Waste Compactor for skip lift/chain lift vehicles from Bergmann is perfect in situations where moderate volumes of high moisture-content waste is produced. This is typically food or food by-product waste. Unless the Compactor is fully sealed, this type of waste will produce odours and seepage of fouled water or effluent.

Container capacity ranges from 8-12m³.  The most popular model is the Bergmann MPB 414 SN/10

Bergmann’s Wet Waste Compactors are fully sealed, including the doors, guaranteeing to eliminate seepage and minimise odours.

And once the Compactor is full, indicated by a warning light, the Compactor is simply taken away for emptying.



The pendulum blade keeps the charge box clean and the design ensures cleanliness without the accumulation of refuse deposits on the outside.  Therefore there are no cleaning hatches to be maintained.  The MPB can be continuously charged, because the packer blade passes under the waste that has been thrown in on its return cycle, pushing it into the bin on its forward cycle.

Optimum Compaction is achieved, while the operation noise generated by the MPB is extremely low.  The cone shaped container makes it easier to empty. Years of experience and constant improvement has resulted in the combination of the most economical net weight with great strength. The MPB is fitted with a robust hydraulic unit

Standard equipment

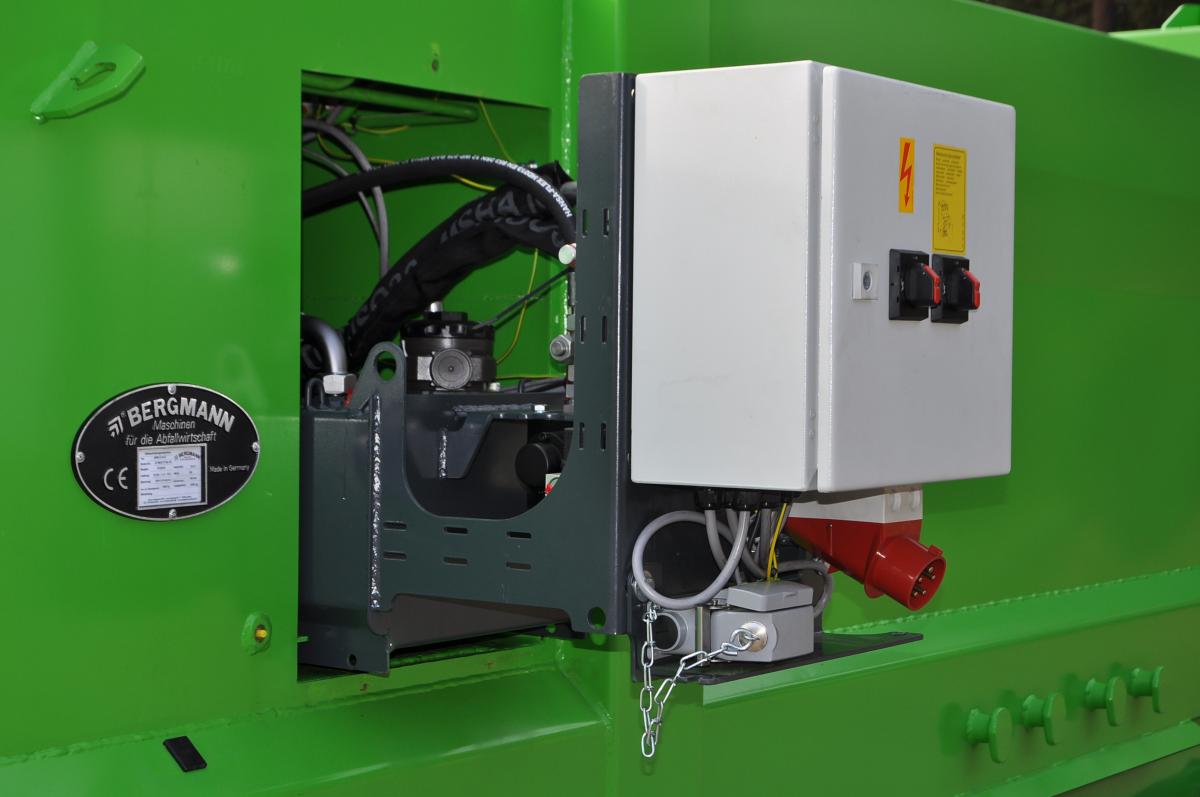

  • Quality hydraulic pump with central hydraulic block
  • Adjustable pick-up pistons to adjust on various skip-lift vehicle manufacturers
  • Autotimer
  • Overload protection
  • Purely hydraulically controlled and, thus, durable reversing valve
  • Central bolting device with durable, attractive spindle catch
  • Wedge bolting device for maximum water tightness
  • Optical oil level indicator and oil level monitoring
  • Working hour counter



A range of accessories are available when ordered with the machine including:   watertight finish, hydraulic 75% and 100% full signals, drainage plug, key switch instead of a start button, integrated pinion and comb lift bin lifts and bin lid openers and special RAL paint.

Bergmann MPB 414 Wet Waste Compactor

MPB Wet Waste Compactor in action:

For further information on this or any other Bergmann products, please contact us.

Technical Information

  • Smaller Portable MPB 414 Compactor, transported via skip lift (chain lift)
  • Container capacity ranges from 8-12m³

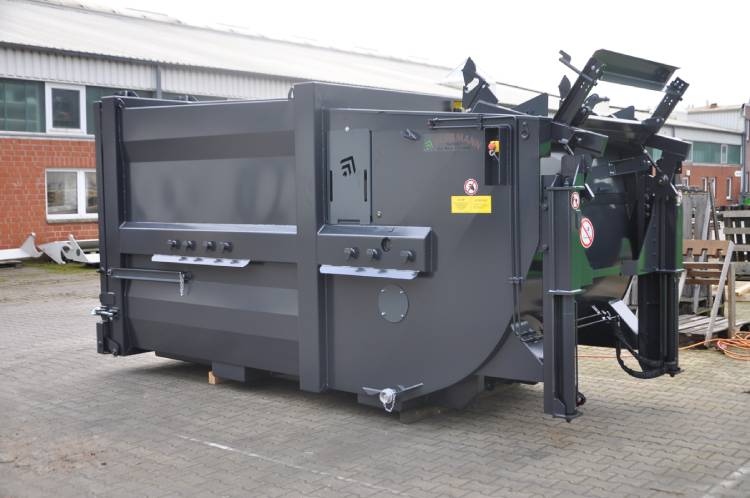

  • Can be supplied with an integrated bin lift if required

Technical Summary

Model Bergmann MPB 414 SN/10 (chain / skip lift)
Container Capacity (m³) 9.8
Loading Aperture Capacity (m³) 2.0
Press Capacity per cycle (m³) 0.65
Cycle time (sec) 14
Cylinder thrust (kN) 246
Operating Pressure (bar) 180
Blade face pressure(N/cm²) 25.7
Total weight (kg) 2920
Length (mm) 4600
Width (mm) 2027
Height (mm) 2450
Loading aperture height (mm) 1974
Loading aperture length (mm) 1023
Loading aperture width (mm) 1400
Electrical Data 5.5kW, 400V 50Hz 3 phase connector CEE-Form 32 A(5 x 2.5mm²) TUV, GS, CE
