Bergmann APS 1100E

Bergmann Compactors, Compactors, Roto Compactors

The Bergmann APS 1100E type 183 Bin Press handles both wet and dry waste. It is used with 1100 litre bins and can achieve compaction results of up to 9:1 thanks to a special power crusher roller which collects, shreds and compacts waste.

This machine is particularly suitable for wet waste and heavy waste
Handles refuse including cardboard, foil, polystyrene, and fruit boxes as well as recyclable materials
Eliminates the need for expensive and space consuming containers
Achieves maximum cost savings and significant reduction in effort and labour
Ideally suited to the Food industry, Restaurants, Hospitals and Hotels

Categories: Bergmann Compactors, Compactors, Roto Compactors

QUICK SPECS

Used with 1100 litre bins

DOWNLOADS

APS 1100-E Typ 183 Technical Data inc accessories 2016-04-07

APS 1100-E Typ 183 Technical Drawing

APS 1100-E 183 Layout

Roto Compactor drum types

FINANCE OPTIONS

Purchase
Rent

CONDITION

New
Refurbished

Let's Talk

Technical Info

Square format, electrically driven
Compacts waste into 1100 litre bins
Suitable for wet and dry waste, especially kitchen waste
An alternative model, the APS 800 is a hydraulically driven machine and can be supplied for use with 800 litre bins, or the hydraulic machine can be modified by Bergmann for use with 600 litre bins
High processing capacity
Huge loading aperture
Requires little space
Low operating noise
Electrical protection class IP 44
Can be loaded by chute or conveyor belt
Machine CE-certified

Technical Summary

Model	Bergmann APS 1100E type 183
Empty weight (kg)	900
Max height with extended compaction unit (mm)	2580 or 2600 with roof cover
Filling height (mm)	1,890
Overall Width (mm)	1,450
Overall Height (mm)	2,580
Overall Depth (mm)	1,730
Required headroom (mm)	2,300
Electrical Data	16A three phase +N 400 V

Additional Info

Electrically driven Bergmann APS 1100E compacts waste into 1100 litre bins

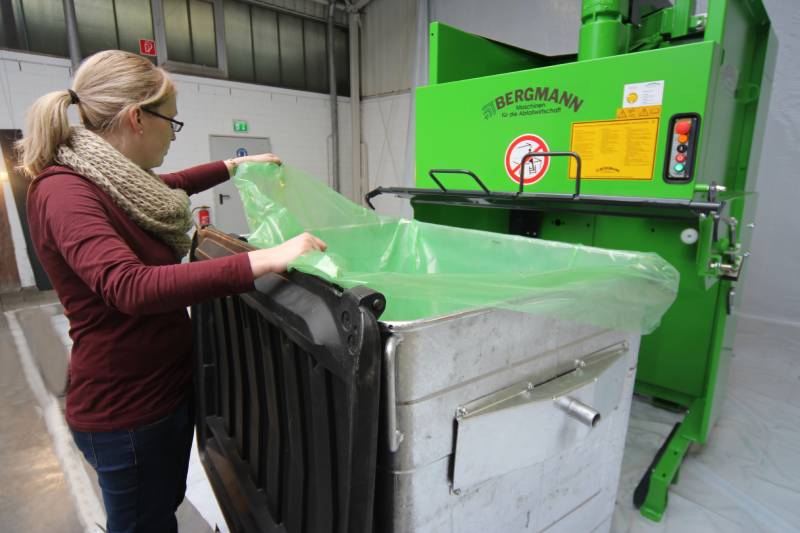

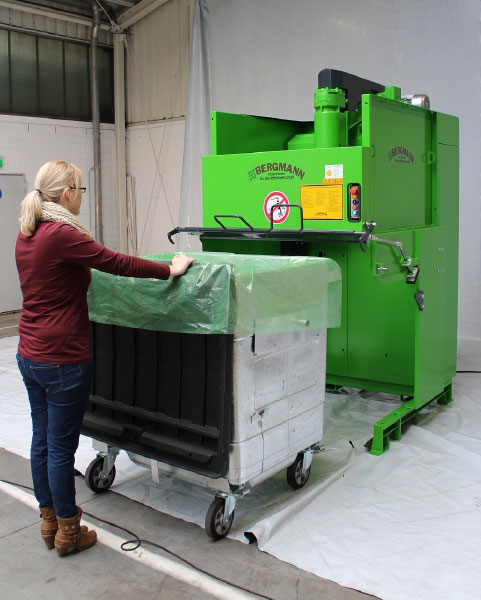

The Bin Press is simple to operate – simply wheel the bin up to the Bin Press and position it in the opening. The bin is lifted into place hydraulically and the arm with the rolling drum descends into the bin. Because the bin is held in position by the machine, it cannot be damaged by the compacting arm.

Minimum space requirements
Large loading aperture
Can be fed by conveyor or chutes

Standard equipment

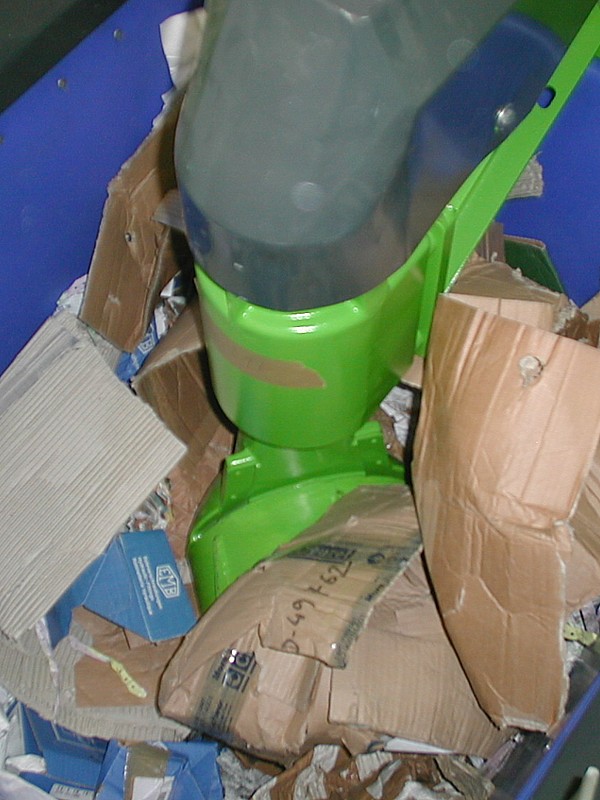

Special compaction drum for paper and cardboard boxes
Faceplate
Electrical protection class IP 44
Autotimer
Working hour counter
Overload protection
Full message via indicator lamp

Accessories

Chute
Special compaction drum for foils with blade set
Cone roller with 24 cones for strong pasteboards
Roof
Additional full message via horn or flashing light
Water sprinkling against dust formation
Ozone generator against unpleasant odours

For further information on this or any other Bergmann products, please contact us.
