Avermann 20P Portable Compactor

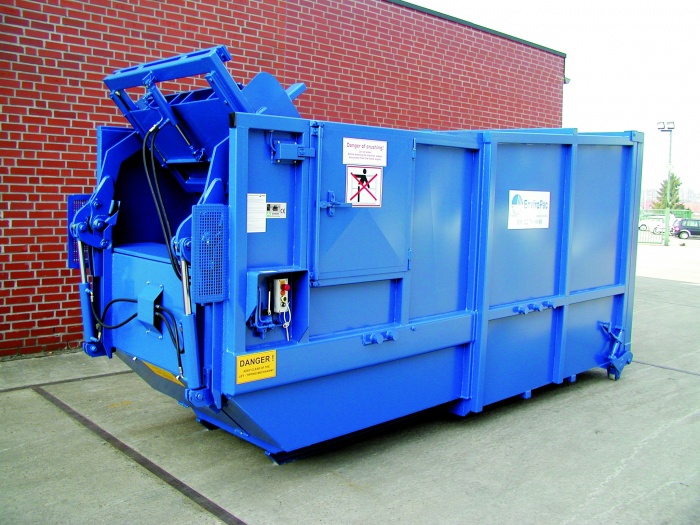

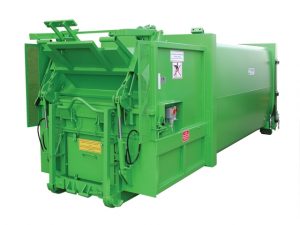

Avermann 20P Portable Compactor With Integrated Bin Lift

This roll on / roll off (hook lift) Portable Compactor from Avermann has a huge 20 cubic metre capacity with a charge box size of 1.3 cubic metres.

With a cycle time of just 43 seconds, this Compactor can compact large quantities of waste material quickly and efficiently. An enlarged feed-opening on these waste compactors is designed for feeding bulky materials.

Avermann 20P Compactor

A range of optional extras are available, including integral bin lift, connection hoppers and weighing units. A feed opening cover is also available to prevent unauthorised filling. Integrated or attachable Bin Lifts are also available. These waste compactors can be fitted with a pendulum-style rear-door for removal of compacted materials, or can be laterally hinged.

For further details on this or any other Avermann Compactors, please contact us.

Technical Information

  • Roll on / roll off (hook lift) Portable Compactor with a huge 20 cubic metre capacity
  • Charge box size of 1.3 cubic metres.
  • Optional ramp feeding, pendulum style rear door or side rear door
  • Optional front or side feeding, slanted or high side walls and individual opening mechanisms
  • Optional integrated bin lift
  • Optional web based message system for location and filling level indication

Technical Summary

Model MPC 20 P/E
Net capacity 20 m³
Machine length* 6450 mm
Machine width 2500 mm
Machine height 2550 mm
* with rear-hook: + 275 mm
Feed-opening length 1000 mm
Feed-opening width 1980 mm
Feeding height 1400 mm
Dead weight 4900 kg
Oil quantity 70 l
Capacity per drive stroke 1.3 m³
Cycle time (idle) 43 sec
Electric supply 3 x 400 V/50 Hz
Fuse protection on site 25A slow fuse
Externally mounted plug CEE-5 x 32 A/6h
Transport system Roll-on roll off trucks (hook lift)
