Europress Balex 30 Waste Baler

, , ,

Heavy duty baler with cross cylinders

The Balex 30 baler is a heavy-duty machine, equipped with cross cylinders for stable compression. It has a compact, low overall height, making it very easy to locate in most environments.

30 Tons Press Force

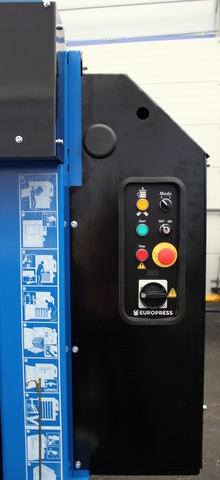

It has a spacious chamber, even compacting large boxes with ease and with a large feed opening, loading is easy. It has a heavy-duty discharge door closure with electronic sensors and two-handed bale ejection system ensure safe usage. The Balex 30 has clear user pictogram instructions on the front panel for ease of operator usage and the key operated stop switch is supplied as standard.

QUICK SPECS

Bale dimensions H x W x D (mm) 950 x 1200 x 840
Bale weight cardboard approx. (kg) 280-320
View More

FINANCE OPTIONS

  • Purchase
  • Rent

CONDITION

  • New
Let's Talk
X

Technical Info

    • Very quiet operation resulting in minimal disruption in the work environment (59 dBa)
    • Low overall height (1995mm) makes it easy to locate the baler
    • Balex is extremely simple and safe to use with clear operating instructions on the front panel
    • Fast cycle time of 30 seconds
    • Safe and easy to use door handle allowing quick assess to load the chamber
    • SMART functions
    • Two modes of operation, one for cardboard and the other for plastics
    • Key operated lock switch as standard
    • Bale full light when bale is finished
    • Meets EN 16500 Safety Standard
    • Depending on the waste stream, our 16mm strap is ideally suited for use with this machine.  Alternatively, baling wire can also be used.>

Technial Summary

Model Balex 10
Compaction force (t) 30
Power supply 3 × 400V 50Hz 16A
Motor (kW) 4.0
Noise level (dB) 59
Cycle time (sec) 30
Dimensions H x W x D (mm) 1995 x 1810 x 1250
Weight (kg) 2000
Feed opening H x W x D (mm) 520 x 1120 x 950
Feed height (mm) 940
Bale dimensions H x W x D (mm) 950 x 1200 x 840
Bale weight cardboard approx (kg) 280-320

Additional Info

The strap box is conveniently located at the front of the baler, which makes it easy and less time consuming to change the strap. Alternatively, wire can be used on this machine if preferred.

The dual-mode function optimizes compression set up for different materials ensuring that it’s easy to switch between baling cardboard and plastic for example. With its 30 tons compression force, it produces very dense bales weighing up to 320 kg. Due to its compact cross cylinder design, the baler is easy to place in any working environment.

When the bale is ready to be ejected, the bale full light switches on automatically. Bale ejection, a two handed operation, is straightforward and the bale fits comfortably on a EUR pallet. The operator’s time is saved thanks to the fast cycle time of just 34 seconds. Overall, its an excellent choice for a wide range of uses.

Intelligent SMART Technology

Safety standard EN16500
Balex utilizes a smart-central that has been tested in Europress’s range of compactors for a number of years, with a second generation version for Balex now in use.

Intelligent SMART technology contributes to a more cost-efficient and safe operation of the baler. Adjustments can be made to device settings to best meet various waste management requirements. The balers monitor their usage and adapt to anomalies in order to protect both the operator and the components.

If you would like to know more about our waste management products, the Balex 30 or any of our  Vertical Balers please contact us.
