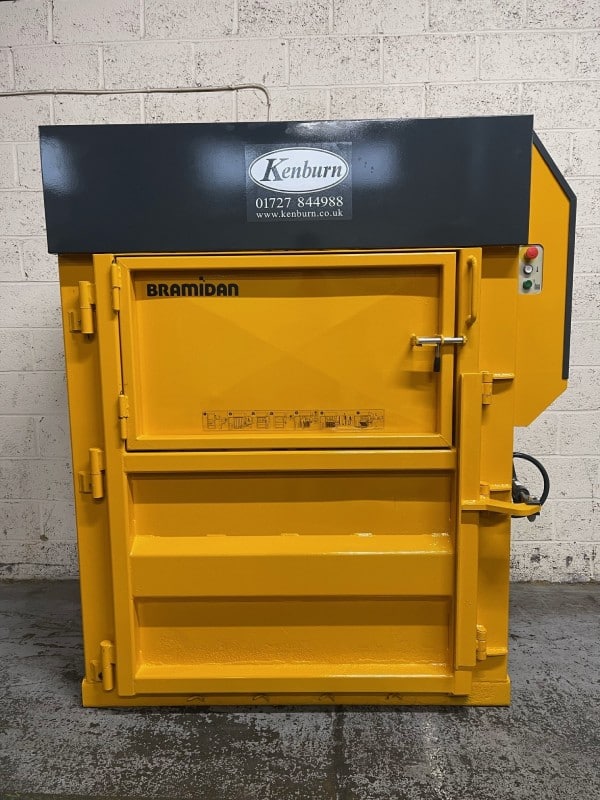

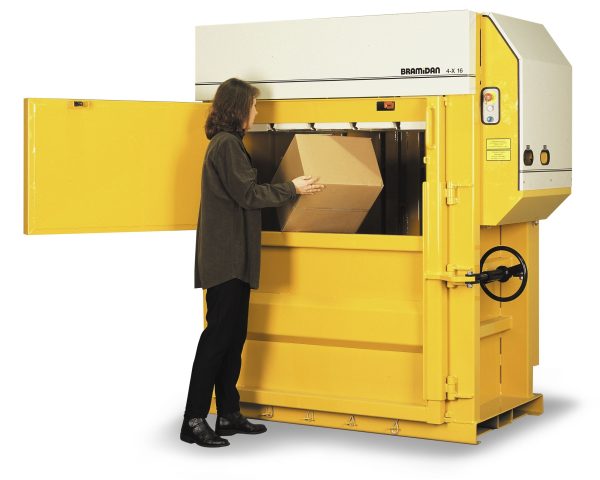

The Bramidan 4-X 16 is equipped with double scissor cylinders, thus the machine offers superior press force but also a very low overall height. Combined with a long stroke, a high bale weight can be achieved.
NB. Baler depicted in technical data sheet shows a Bramidan 4-X(25)
If you would like to know more about the Bramidan 4-X 16 or any of our range of Vertical Balers please contact us.
| Bale Dimensions W x D x H (mm) | 1200 x 800 x 800 |
| Bale weight cardboard approx. (kg) | 200-250 |
 Bramidan 4-X 16 baler technical data |
| Model | 4-X (16) |
|---|---|
| Press force (t) | 16 |
| Power supply | 2×230/400V 50Hz 25/16A |
| Motor (kW) | 4.0 |
| Noise level (dB) | 67 |
| Cycle time (sec) | 20 |
| Dimensions WxDxH (mm) | 1720 x 1290 x 1995 |
| Weight (kg) | 1410 |
| Filling opening WxH (mm) | 1090 x 510 |
| Filling height (mm) | 950 |
| Chamber height (mm) | 1350 |
| Stroke (mm) | 935 |
| Bale size WxDxH (mm) | 1200 x 800 x 800 |
| Bale weight cardboard (kg) | 200-250 |
| Bale weight plastic (kg) | 250-300 |
