Bramidan Bag Press BP2

Bramidan Bag Press

Compress Wet Waste

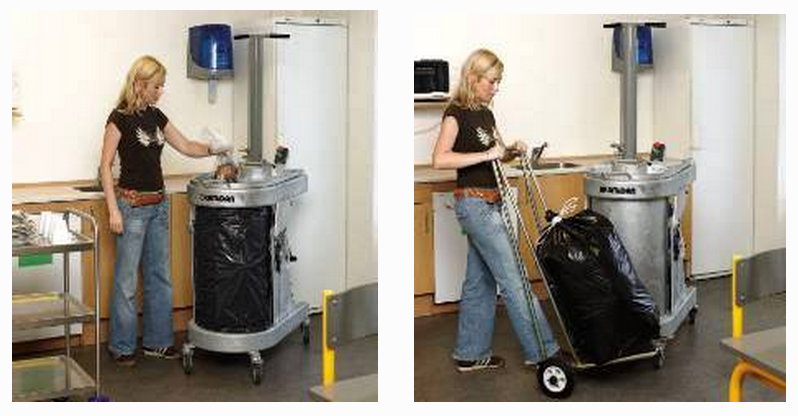

The Bag Press BP2 compacts waste inside a steel chamber enclosed by a plastic bag.  The press is especially useful for cardboard, plastic and cans, and for wet waste.

The wheeled press is easy to move and can be locked in position with a brake. It's easy to operate and the plastic bag can be changed quickly.  Its compact design means that it can be located in areas with a low ceiling height.  A compaction ratio of approximately 6:1 can be achieved.

See the Bramidan Bag Press in action:

Marine BP2 Bag Press is also available to meet waste handling requirements on ships, rigs and shipyards.

If you want to know more about the Bramidan Bag Press BP2 or any of our Compactor range please contact us.

Bramidan Bag Press Waste Compactor

Technical Information

  • Low maintenance
  • Low overall height, only 185cm
  • Filling opening diameter of 450mm
  • Easy to operate
  • Compact designs saves space
  • Galvanized – resistent in aggressive environments
  • Fast cycle time

Technical Summary

Model BP2
Press force (t) 1.5
Power supply 1 x 230V 50Hz 10A
Motor (kW) 0.75
Cycle time (sec) 25

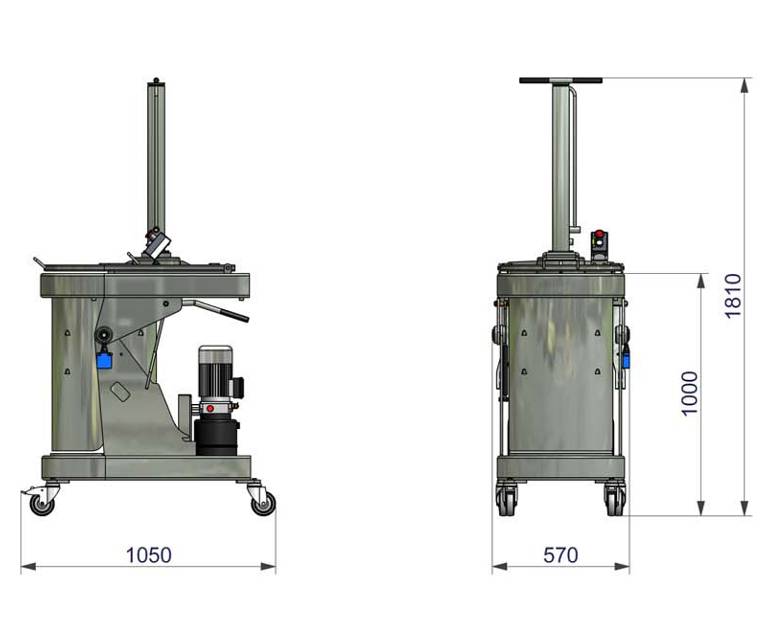

Dimensions WxDxH (mm) 1000 x 600 x 1800
Weight (kg) 220

Filling opening WxH (mm)

Filling opening diameter

Ø430
Filling height (mm) 1000
Chamber height (mm) 660
Stroke (mm) 600
