Bramidan HC40 Fully automatic horizontal baler

The Bramidan HC40 is suitable for larger retail shops, warehouses, industrial and logistical companies where a fully automatic and compact solution is required.

It can be loaded continuously and the bales are tied automatically. The machine is equipped with an automatic light barrier that starts the pressing cycle.  It is ideal for compacting high volumes of waste.



The Bramidan HC40 handles larger boxes

  • Takes up little floor space - the cylinders are located at the side
  • Fully automatic solution - bales are tied automatically
  • Very wide filling opening
  • Low noise level
  • Continuous loading

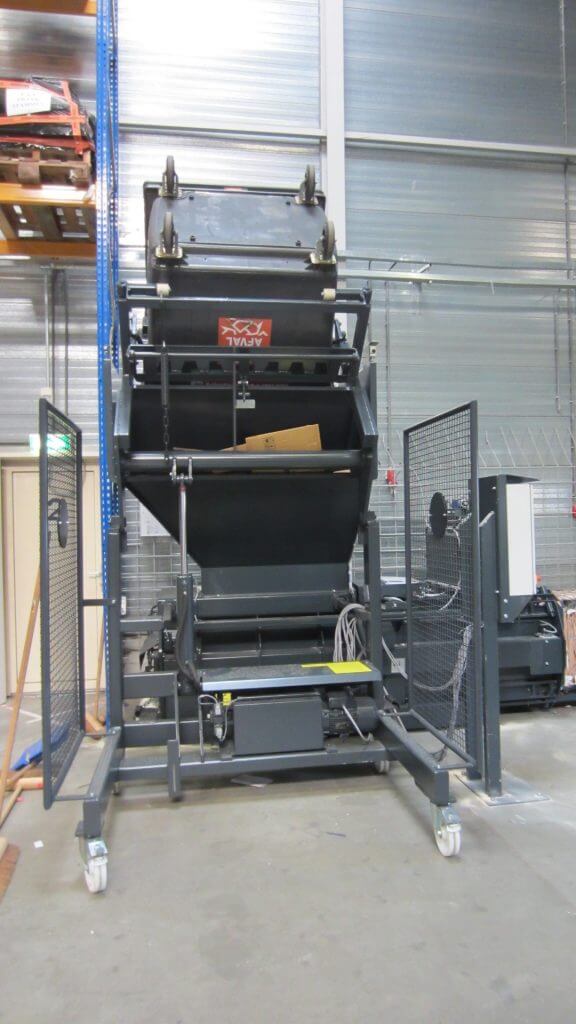

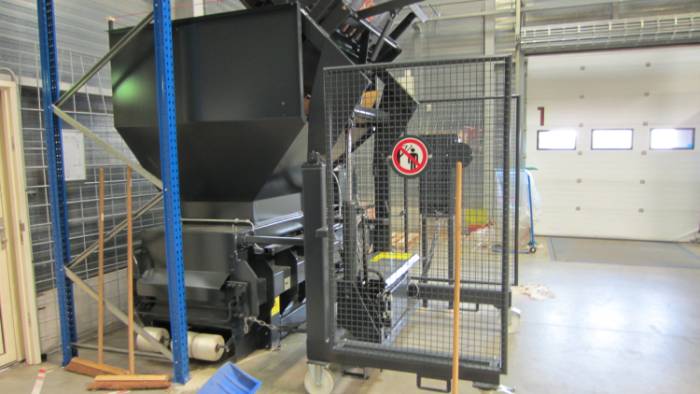

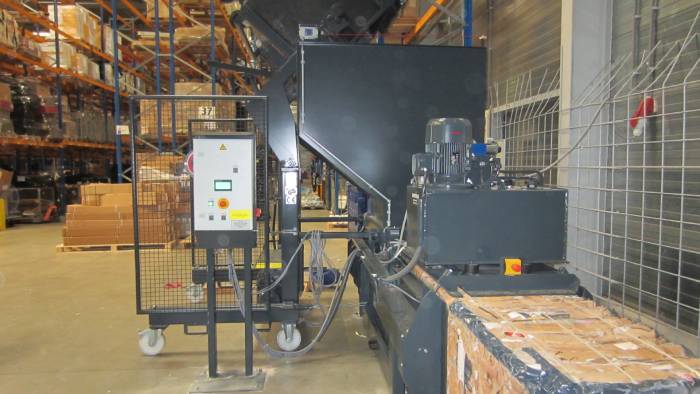

HC40 with bin lift
HC40 with bin lift - Kenburn
Bramidan HC40 with bin lift - Kenburn

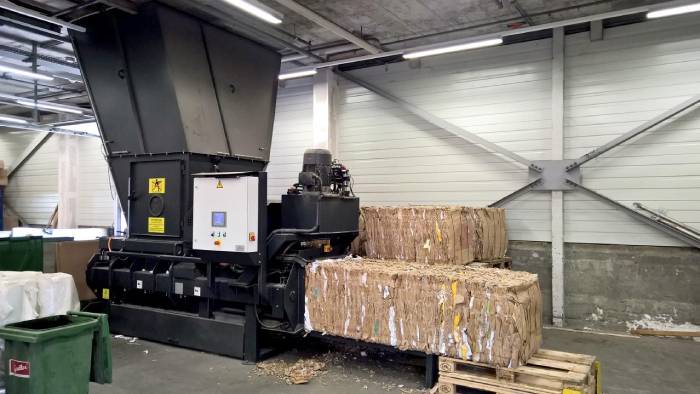

Bramidan HC40 horizontal baler

Technical Specification Summary

 Model   HC40
 Compaction force (kn)   400
 Power supply   3 x 400V 50Hz 35A
 Space required (mm)   5100 x 2800
 Machine Dimensions LxWxH (mm)   3700 x 2000 x 2200
 Cycle time (sec)   34
 Motor (kW)   15
 Weight (kg)   4200
 Feeding opening L x W (mm)   1030 x 1100
 Feeding volume (m³)   0.85
 Number of ties   4
 Volume throughput (m³/h)   71
 Bale size WxDxH (mm)   1200 x 1100 x 750
 Bale weight approx (kg)   350-450
 Press force (t)   40

If you would like to know more about our waste management products, the HC40 or any of our Horizontal Baler range, please contact us.

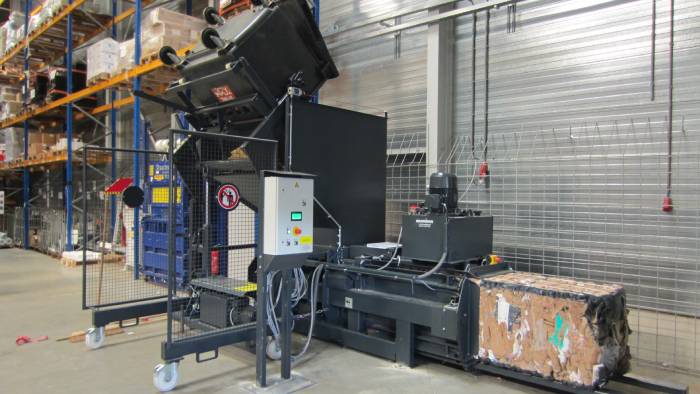

Bramidan HC40 with bin lift

See the Bramidan fully automatic baler in action
