Bramidan HC30 Fully automatic horizontal baler

Efficient and Compact Solution with High Capacity

The Bramidan HC30 is suitable for larger retail shops, warehouses, industrial and logistical companies where a fully automatic and compact solution is required.

The HC30 can be loaded continuously and the bales are tied automatically. The machine is equipped with an automatic light barrier that starts the pressing cycle.

  • Ideal where space is limited
  • Minimal floor space required - the cylinders are located at the side
  • Fully automatic solution - bales are tied automatically
  • Flexible output - the bale length can be adjusted
  • Suitable for cardboard, paper and plastic foil
  • Extra wide feed opening
  • Low noise level

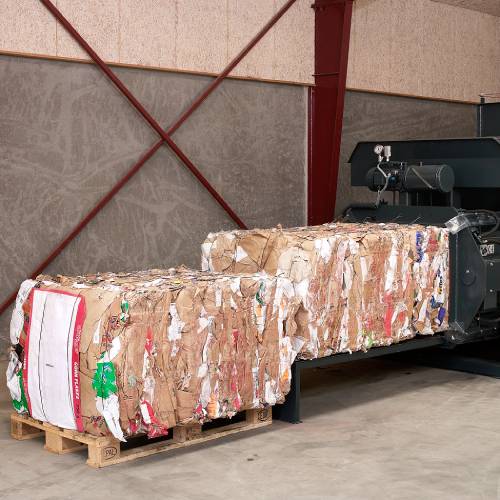

Bramidan HC30 ejecting cardboard bale

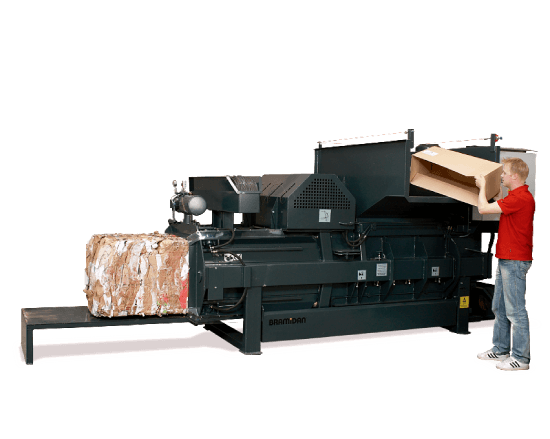

Bramidan HC30 horizontal baler

Technical Specification Summary



 Model   HC30
 Compaction force (kn)   300
 Power supply   3 x 400V 50Hz 35A
 Space required (mm)   5100 x 2600
 Machine Dimensions LxWxH (mm)   3700 x 1800 x 2200
 Cycle time (sec)   34
 Motor (kW)   11
 Weight (kg)   3800
 Feeding opening L x W (mm)   1030 x 950
 Feeding volume (m³)   0.69
 Number of ties   4
 Volume throughput (m³/h)   58
 Bale size WxDxH (mm)   1200 x 950 x 700
 Bale weight approx (kg)   250-350
 Press force (t)   30



If you would like to know more about our waste management products, the HC30 or any of our Horizontal Baler range, please contact us.

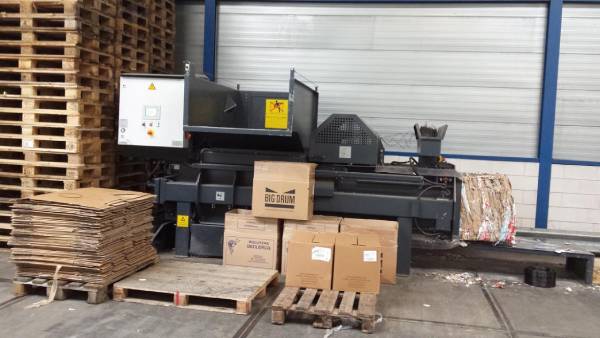

Bramidan HC30 semi automatic horizontal baler

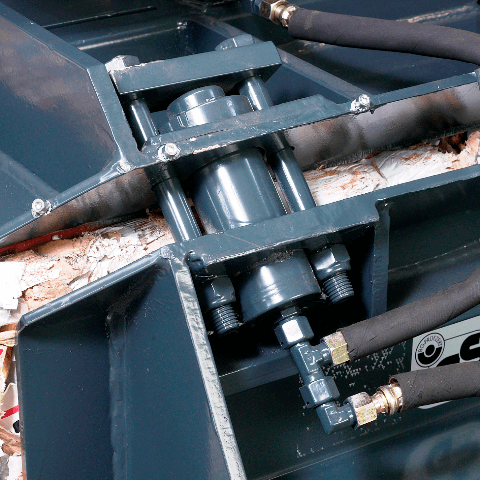

HC30 channel adjustment

See the Bramidan Fully Automatic Horizontal Baler in action
