Europress Balex 10 Waste Baler

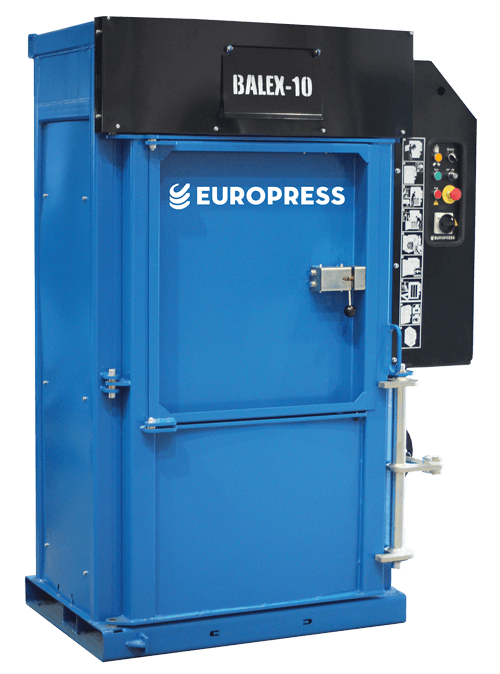

Europress Balex-10-Print-large

Baler with Small Footprint and Low Height

The Balex 10 baler is a compact and durable machine, suitable for busy environments. It’s equipped with cross cylinders that give stable compression and with a very low overall height of just 1920mm, it’s very easy to locate even in small spaces. With 10 tonnes of compaction force, the Balex 10 produces very dense bales of up to 110kg.  As with all Balex balers, it's equipped with with a dual function mode enabling separate programs to be optimised for two different waste streams such as one for cardboard and the other for plastic bags.  This makes it the ideal baler for handling both cardboard and soft plastics.

It has a spacious loading area, allowing for the easy compaction of small cardboard boxes and soft plastic bags. Overall, its an excellent choice for a wide range of uses.  A version of the Balex 10 baler is available for use with single phase power.

Ideal for Baling Soft Plastics

The Balex 10 has clear user pictogram instructions on the front panel for ease of operator usage and the key operated stop switch is fitted as standard.
The strap box is conveniently located at the front of the baler, which along with the integrated strap cutting blade makes it very easy and quick to both change the strap and tie off the bale.

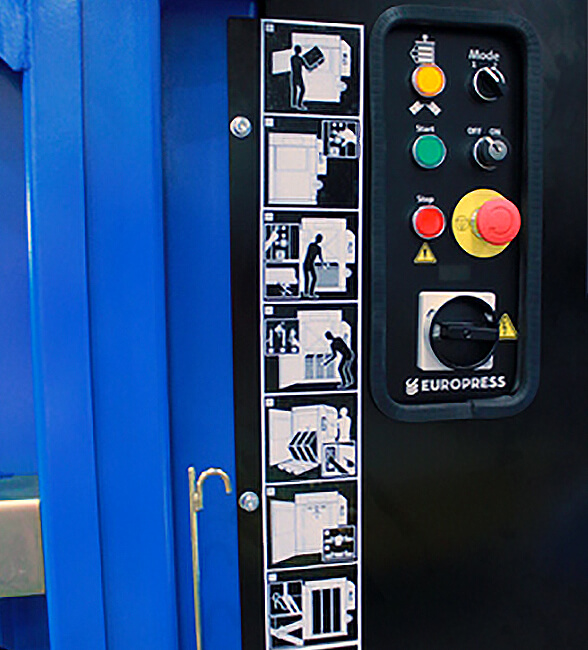

Balex-10-control-panel

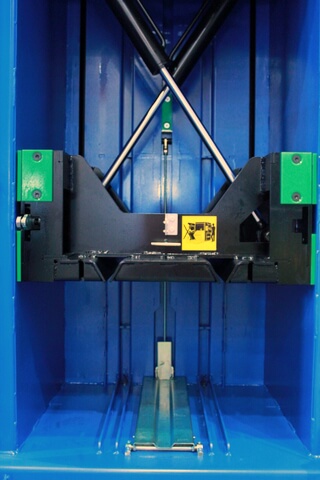

Balex 10 inside chamber - Kenburn

Two Year Parts and Labour Warranty

A fast cycle time of 15 seconds saves the operator time.

The bale full light switches on when the bale is ready.  Bale ejection is easy and the bale fits comfortably on a EUR pallet.

Balex utilizes a smart-central which has been tested in Europress’s range of compactors for several years, with a second generation version now in use.

See the Europress Balex Balers in action:

Intelligent SMART Technology

All the best features of the original design have been improved for the Balex baler range, with lots more functions specifically designed for balers that improve durability, safety and the ease of use of the machine.

If you would like to know more about our waste management products, the Balex 10 or any of our  Vertical Balers please contact us.

Europress Smart
Safety standard EN16500

See the SMART Technology

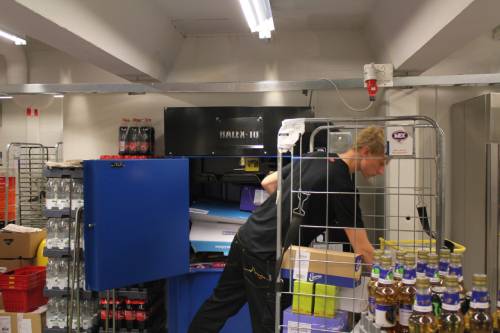

Balex-10 for cardboard, small retail store
Balex-10 for plastic, consumer electronics store

Technical Information

  • Bale weight cardboard approx (kg) 80-110
  • Dimensions H x W x D (mm) 1920 x 1360 x 840 - Low height & very quiet in operation 59 (dB)
  • 10 ton compaction force • cycle time 15 secs
  • Key operated lock switch fitted as standard
  • Two modes of operation, one for cardboard and the other for plastics
  • TWO YEAR WARRANTY
  • Cross cylinder design
  • SMART technology
  • Balex is very simple and safe to use with clear pictogram operating instructions on the front panel
  • Opening the chamber is quick and easy with the quick to release door handle
  • Bale full light when bale is finished
  • Meets EN 16500 Safety Standard
  • Our 9mm strap is ideally suited for use with this machine

Technical Summary

Model Balex 10
Compaction force (t) 10
Power supply 3 x 400V 50Hz 16A
Motor (kW) 4.0
Noise level (dB) 59
Cycle time (sec) 15
Dimensions H x W x D (mm) 1920 x 1360 x 840
Weight (kg) 840
Feed opening H x W x D (mm) 610 x 720 x 600
Feed height (mm) 710
Bale dimensions H x W x D (mm) 600 x 800 x 670
Bale weight cardboard approx (kg) 80-110
