Bramidan X50 Refurbished Waste Baler

High capacity Vertical Baler

The Bramidan X50 is a Baler built with the capability to bale materials quickly and efficiently. This bale press makes waste management easy. With cross cylinders delivering high pressure and extremely stable compression this is an exceptionally efficient Baler.

The X50 is also low in height, particularly when you consider its capacity, meaning that finding room for improving your waste management system is straightforward. Combine that with its large filling opening and the result is a versatile, space saving and powerful machine.

If you would like to know more about the X50 or any of our other  Vertical Balers please feel free to contact us.

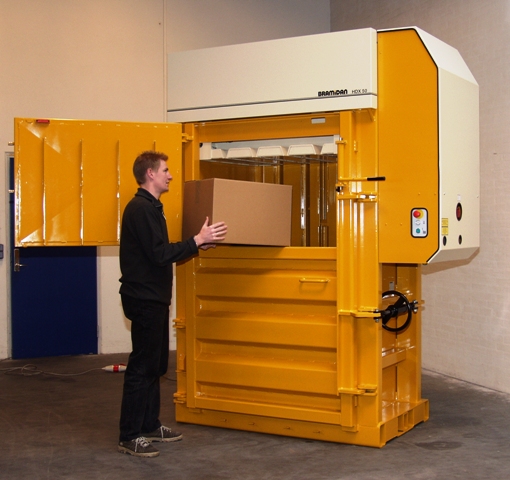

Bramidan X50 Vertical Baler supplied by Kenburn

See the Bramidan X Series balers in action:

Technical Information

  • Bale weight approx (kg) 400-550
  • Dimensions WxDxH (mm) 1950 x 1400 x 2580
  • 50 Tonnes press force
  • Wide opening for large load capacity
  • Fast processing of waste due to extremely efficient operation
  • Easy to use
  • Low Maintenance
  • Turnbuckle door release

Technical Summary

Model X50
Press force (t) 50
Power supply 3x400V 50Hz 32A
Motor (kW) 5.5
Noise level (dB) 71
Cycle time (sec) 23

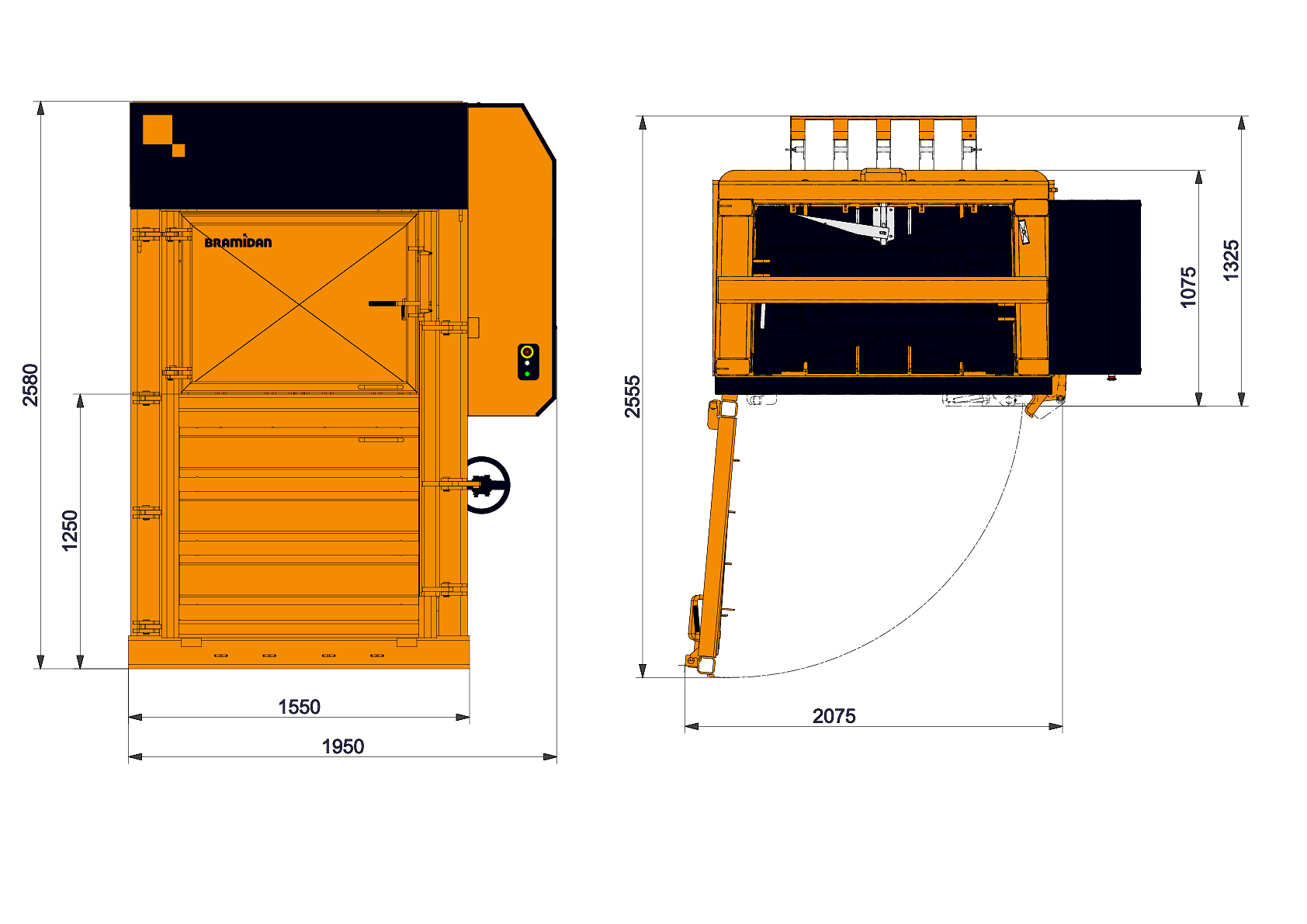

Dimensions WxDxH (mm) 1950 x 1400 x 2580
Weight (kg) 2500
Filling opening WxH (mm) 1090 x 600
Filling height (mm) 1250
Chamber height (mm) 1700
Stroke (mm) 1210
Bale size WxDxH (mm) 1200 x 800 x 1100
Bale weight cardboard approx (kg) 400-450
Bale weight plastic approx (kg) 450-550
