Bramidan 4-X 30 Refurbished Waste Baler

The Bramidan 4­-X 30 is suitable for retail shops and industrial companies with large quantities of waste.

It is a compact machine with high capacity and superior press force. This bale press has a very wide filling opening for handling larger boxes, making the daily operation as easy as possible.

The finished bale can be tied with flat straps or steel wires.

If you would like to know more about the Bramidan 4-X (30) or any of our range of Vertical Balers please contact us.

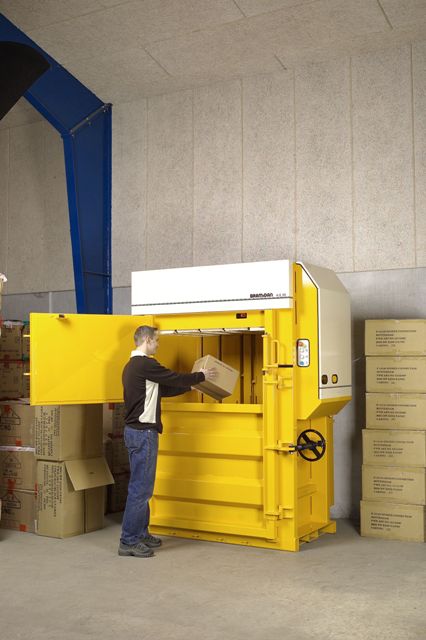

Bramidan 4X 30 Waste Baler - Kenburn

Technical Information

  • Bale weight approx 280-500kg
  • Dimensions WxDxH (mm) 1710 x 1310 x 2295
  • 30 Tonnes press force
  • Professionally refurbished to the highest standards in our workshop in St Albans
  • As-new condition
  • 12 month parts and labour warranty
  • Wide opening for handling larger boxes
  • Low in height
  • Low Maintenance
  • Available for purchase or rental

Technical Summary

Model 4-X (30)
Press force (t) 30
Power supply 3×230/400V 50Hz 25/16A
Motor (kW) 4.0
Noise level (dB) 67
Cycle time (sec) 34
Dimensions WxDxH (mm) 1710 x 1310 x 2295
Weight (kg) 1710
Filling opening WxH (mm) 1090 x 600
Filling height (mm) 1145
Chamber height (mm) 1650
Stroke (mm) 925
Bale size WxDxH (mm) 1200 x 800 x 1000
Bale weight cardboard approx (kg) 280-350
Bale weight plastic approx (kg) 400-500
