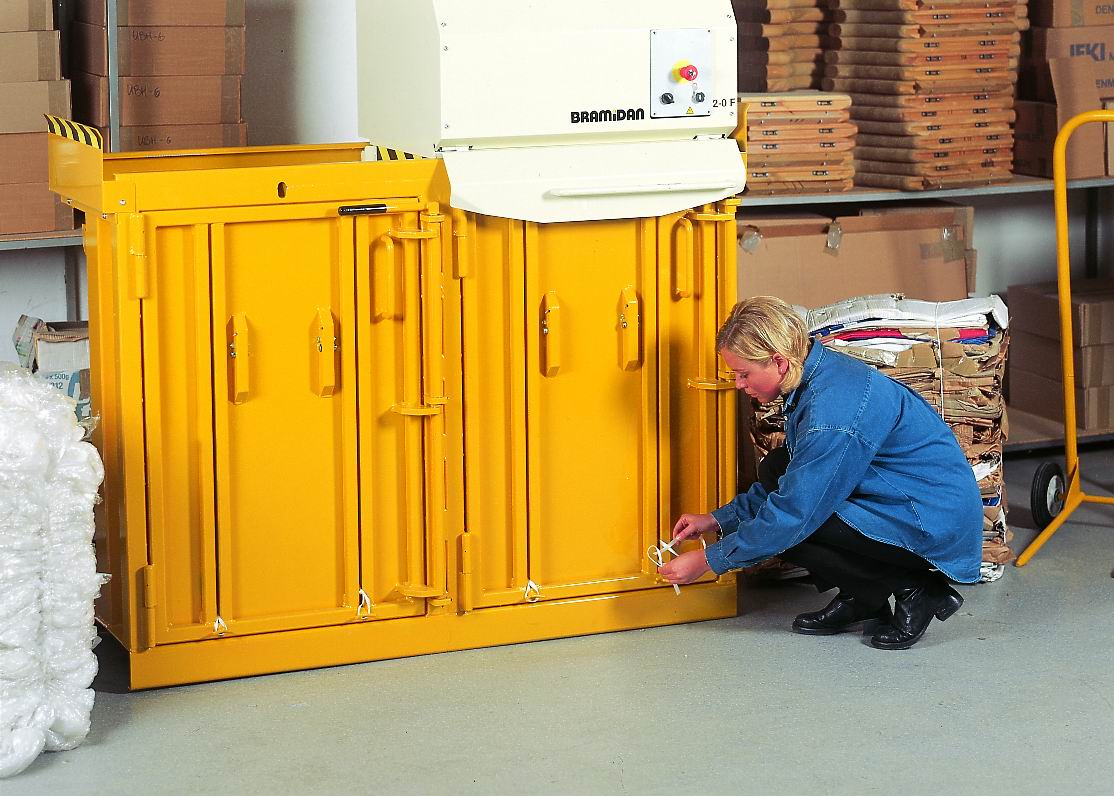

Bramidan 2-0F Refurbished Multi Chamber Waste Baler

Bramidan 2-0F baler - Kenburn

Highly flexible Baler

If you produce multiple waste streams concurrently, such as cardboard and plastic, with the Bramidan 2-0F, rather than needing to wait until a bale of one material is finished before ejecting it, you can bale both materials at the same time, one in each chamber.

By having one press ram servicing two (or more) baling chambers, the 2-0F from Bramidan solves this problem. As a result you can save time when baling and reduce the time it takes to sort waste into the relevant types for recycling which makes the whole process as hassle free and efficient as possible.

If you would like to know more about the Multi-Chamber 2-0F or any of our range of Vertical Balers please contact us.

Technical Information

  • Bale weight approx (kg) 40-80
  • Dimensions WxDxH (mm) 1670 x 850 x 2175
  • 4 Tonnes press force
  • Rapid cycle time ensures that waste is pressed and sorted fast
  • The horizontal handle means that moving the press section is simple and quick
  • Easy automatic ejection of bales when the baling process is finished

Technical Summary

Model 2-0F
Press force (t) 4
Power supply 3×230/400V 16A
Motor (kW) 2.2
Noise level (dB) 75-79
Cycle time (sec) 18
Dimensions WxDxH (mm) 1670 x 850 x 2175
Weight (kg) 580
Filling opening WxH (mm) 700 x 500
Filling height (mm) 1240
Stroke (mm) 750
Bale size WxDxH (mm) 700 x 500 x 700
Bale weight cardboard approx (kg) 40-60
Bale weight plastic approx (kg) 40-80
