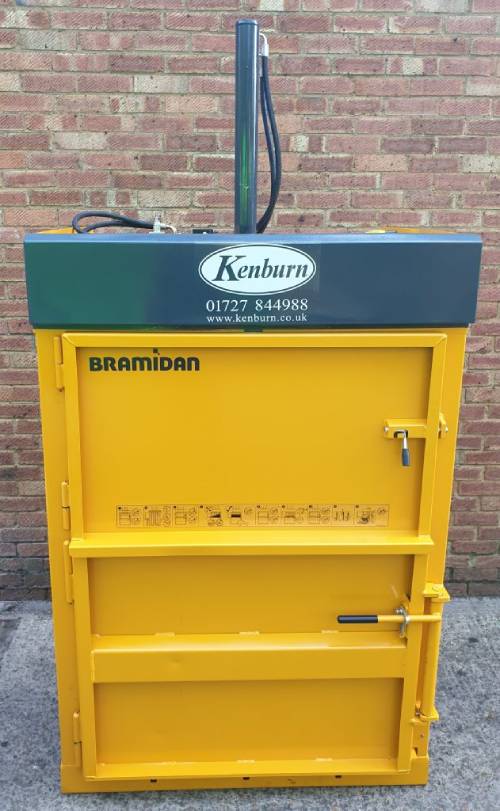

Bramidan B4 Refurbished Waste Baler

The Bramidan B4 baler is a machine which has been constructed to service users with smaller amounts of waste, but who still need a machine to handle bulky materials. The machine is characterized by a very wide filling opening of 1 metre, which is an advantage when handling larger cardboard boxes.

The chamber is equipped with rows of efficient barbs, which keep the material back and ensure optimum filling.

If you would like to know more about the Bramidan B4 or any of our range of Vertical Balers please contact us.

Bramidan B4 Baler

Technical Information

  • Bale weight approx 70-120kg
  • Dimensions WxDxH (mm) 1190 x 1045 x 2370
  • 4 Tonnes press force
  • Easy to replace straps
  • Wide filling opening: WxH 1000 x 490mm
  • Professionally refurbished to the highest standards in our workshop in St Albans
  • As-new condition
  • 12 month parts and labour warranty
  • Available for purchase or rental
  • 4 Tonnes press force

Technical Summary

Model B4
Press force (t) 4
Power supply 3×230/400V 50Hz 25/16A
Motor (kW) 2.0
Noise level (dB) 65-68
Cycle time (sec) 19
Dimensions WxDxH (mm) 1190 x 1045 x 2370
Weight (kg) 575
Filling opening WxH (mm) 1000 x 490
Filling height (mm) 915
Chamber height (mm) 1290
Stroke (mm) 750
Bale size WxDxH (mm) 1100 x 700 x 800
Bale weight cardboard approx (kg) 70-100
Bale weight plastic approx (kg) 90-120
