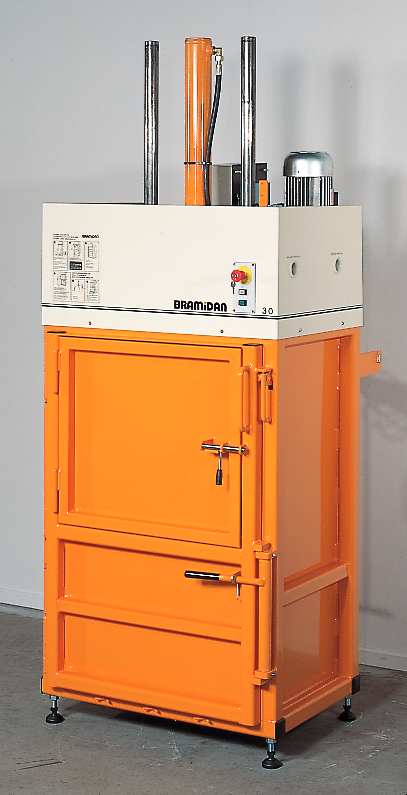

The Bramidan 3-0 is suitable for smaller retail shops and industrial companies with standard size cardboard boxes, but with limited volume of waste. The machine is characterised by a relatively large filling opening and a long stroke.
| Bale Dimensions W x D x H (mm) | 800 x 500 x 650 |
| Bale weight cardboard approx. (kg) | 60-90 |
 Bramidan 3-0 baler |
| Model | 3-0 |
|---|---|
| Press force (t) | 8 |
| Power supply | 3×230/400V 16A |
| Motor (kW) | 2.2 |
| Cycle time (sec) | 35 |
| Dimensions WxDxH (mm) | 930 x 900 x 2335 |
| Weight (kg) | 540 |
| Filling opening WxH (mm) | 710 x 470 |
| Filling height (mm) | 700 |
| Chamber height (mm) | 1020 |
| Stroke (mm) | 750 |
| Bale size (mm) | 800 x 500 x 650 |
| Bale weight cardboard / plastic approx (kg) | 60-90 |
Width
1360Height
1200Depth
780
Bale Weight 400-500kg
Noise Level 75-79dB
Compaction Force 50 ton
Cycle Time 25 secs
1 YR Warranty
Width
1000 Height
800Depth
700
Bale Weight 80-110kg
Noise Level 65-68db
Compaction Force 5 ton
Cycle Time 33 secs
1 YR Warranty
The Bramidan 4-X 16 is equipped with double scissor cylinders, thus the machine offers superior press force but also a very low overall height. Combined with a long stroke, a high bale weight can be achieved.
NB. Baler depicted in technical data sheet shows a Bramidan 4-X(25)Width
1200Height
800Depth
800
Bale Weight 200-250kg
Noise Level 67dB
Compaction Force 16 ton
Cycle Time 20 secs
1 YR Warranty
Width
800Height
600Depth
670
Bale Weight 80-110kg
Noise Level 59dB
Compaction Force 10 ton
Cycle Time 15 secs
Low Height2 YR Warranty
