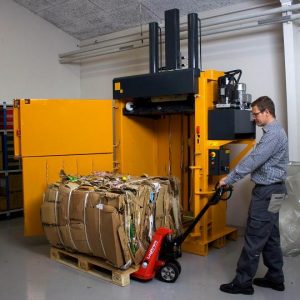

Bramidan B50 Waste Baler

A versatile large scale baler ideal for many industries

The Bramidan B50 is an extremely adaptable Baler suitable for large or small scale baling. Its versatility makes it the logical choice to meet the needs of businesses with variable waste management needs such as retailers.  Rows of efficient barbs in the chamber keep down the waste material, even very expandable material such as dry, soft plastic.

The B50’s traditional design means that it’s not only easy to operate but also requires very little maintenance to continually deliver optimum baling performance.

The Baler has a wide opening allowing for easy management of larger boxes and the chamber’s barbs keep even the most expandable material compressed to provide maximum compression of your waste.

If you would like to know more about the B50 or any of our Vertical Baler range please feel free to contact us.

Technical Information

  • Bale weight approx (kg) 400-550
  • Dimensions LxWxH (mm) 1860 x 1075 x 3180
  • 30 Tonnes press force
  • Produces mill size bales
  • Large filling opening for easy management of larger waste
  • Automatic ejection
  • Safe and steady door opening

Technical Summary

Model B50
Press force (t) 50
Power supply 3x400V 50Hz 32A
Motor (kW) 5.5
Noise level (dB) 70-75
Cycle time (sec) 31
Dimensions LxWxH (mm) 1860 x 1075 x 3180
Weight (kg) 2100
Filling opening WxH (mm) 1200 x 600
Filling height (mm) 1210
Chamber height (mm) 1665
Stroke (mm) 900
Bale size WxDxH (mm) 1200 x 800 x 1100
Bale weight cardboard approx (kg) 400-500
Bale weight plastic approx (kg) 450-550
