EPS Granulator

This machine granulates expanded polystyrene (EPS) material

It is suitable for any business wishing to dispose of bulky polystyrene waste.  The EPS granulator converts pieces of polystyrene into small granules and bags them, allowing for easy disposal.

This machine is suitable for EPS fragments between 0-35 kg/cbm. EPS that can be crushed by hand is suitable for this granulator – the EPS material must not be extruded.

This machine is ideally suitable for waste EPS generated in retail food & non food environments, together with garden centres. The EPS Granulator output table shows the cubic metres per hour that can be processed according to the screen size used.
If you want to know more about the EPS Granulator or what any of our Bramidan Products can do for your business please contact us

Technical Information

  • Low overall height – takes up little space
  • Produces 10-50mm granules depending on screen size
  • Machine is switched off by automatic timer

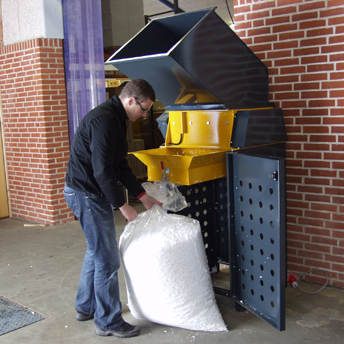

  • Easy access to change the waste sack

Technical Summary

Model EPS Granulator
Power supply 3x400V 50Hz 16A
Motor (kW) 1.5
Noise level (dB) 70

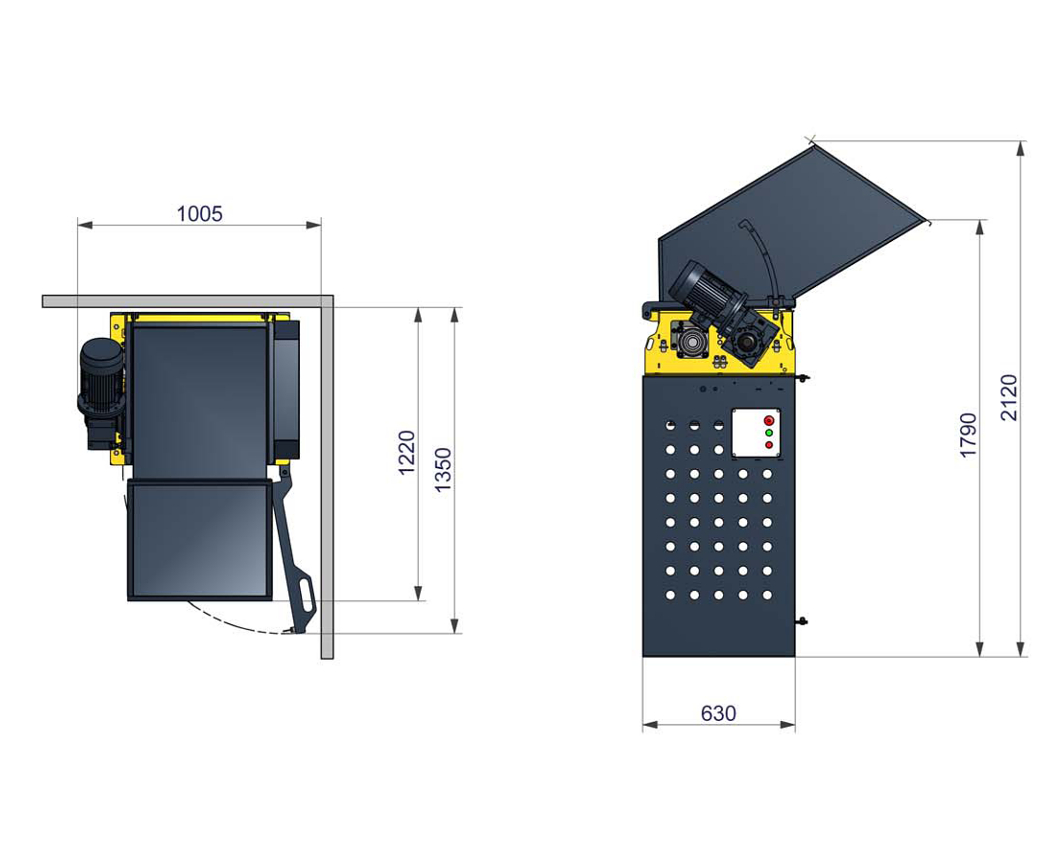

Dimensions WxDxH (mm) 1005 x 1220 x 2120
Weight (kg) 235
Filling opening WxH (mm) 548 x 552
Waste Density (kg/m3) <30
Compaction Ratio:
Screen 10mm (m3/h) 3/1
Screen 20mm (m3/h) 8/3
Screen 30mm (m3/h) 13/5
Screen 40mm (m3/h) 18/7
Screen 50mm (m3/h) 23/9
