Bergmann PS 1400E

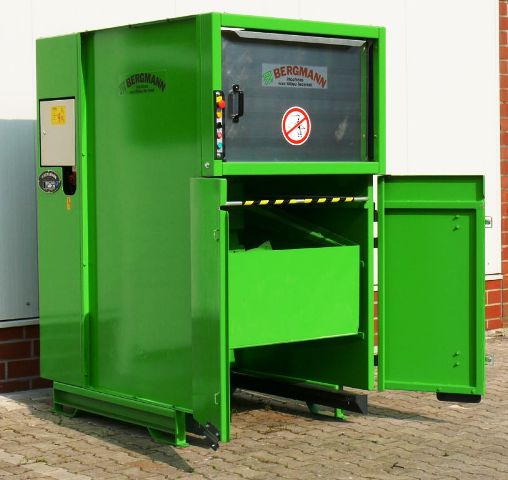

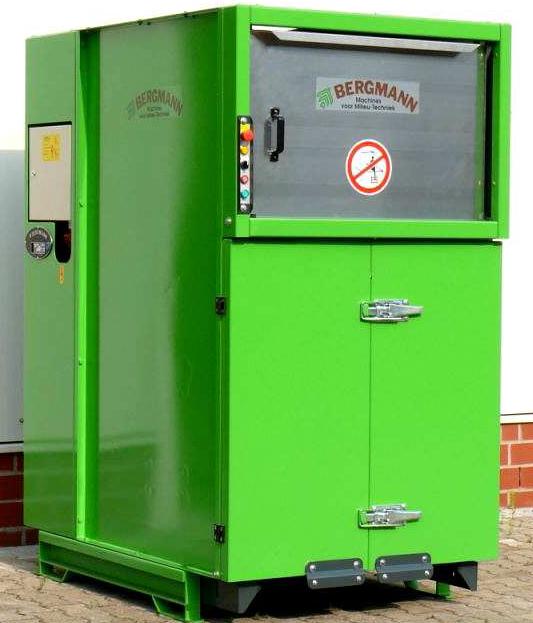

The Bergmann PS 1400E Type 182 is an update to the classic R1250 and compacts into 1400 litre bags.

This machine is now driven by an electric motor, gearbox and belt for quieter operation, lower maintenance requirements and greater bag volumes. This compact machine can easily be situated close to where the waste is being generated.  It is particularly useful for compacting paper/cardboard, foil as well as general waste.  The operator can feed the unit with waste whilst waste is being compacted, so there are no time delays in operating the machine.

Electrically driven Bergmann PS 1400E compacts into 1400 litre bags

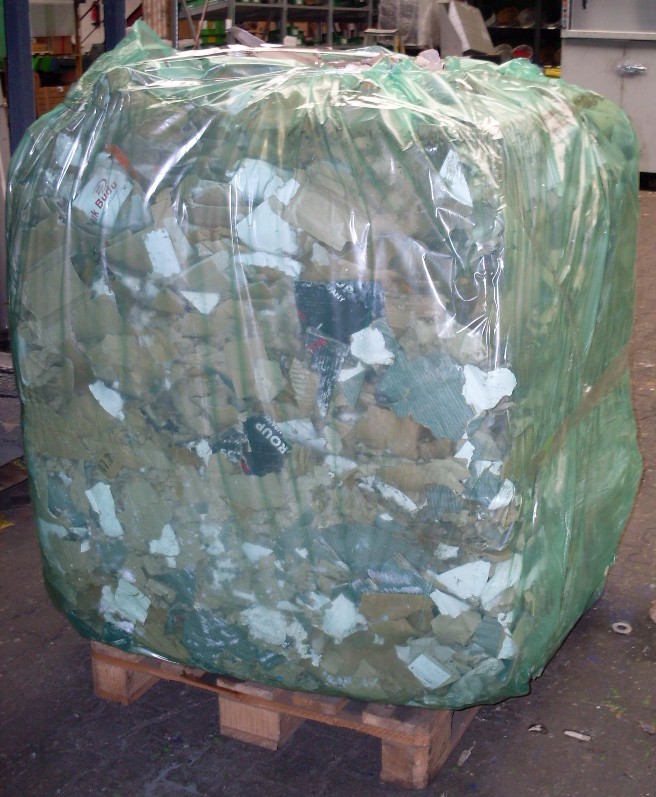

The waste material is gripped, torn and compacted using a specially equipped steel drum and the resulting bale can be easily transported to the collection area using a pallet truck.

Compaction ratios of up to 9:1 for general waste have been achieved with this machine.

Standard equipment

  • Special compaction drum for paper and cardboard boxes, diameter = 580 mm
  • Faceplate
  • Electrical protection class IP 44
  • Autotimer
  • Working hour counter
  • Overload protection
  • Full signal via signal lamp

Accessories

  • Filler chute, reduction of filling height to 1,480 mm
  • Special compaction drum for foils with blade set
  • Cone roller for strong pasteboards
  • Roof
  • Additional full message via horn or flashing light
  • Water sprinkling against dust formation
  • Ozone generator against unpleasant odours

For information on the Bergmann PS 1400 or any other Bergmann products, please contact us.

Technical Information

  • Square format, electrically driven
  • Compacts into 1400 litre bags
  • Suitable for paper and cardboard as well as refuse
  • An alternative model, the PS 1000E is a round version of this machine and compacts into 1000 litre bags
  • Requires little space
  • Huge loading aperture
  • High processing capacity
  • Low operating noise
  • Electrical protection class IP 44
  • Can be filled by chute or conveyor
  • Machine CE-certified

Technical Summary

Model PS 1400E type 182
Power Supply 16A three phase +N 400 V
Dimensions WxDxH (mm) 1200 x 1710 x 2580
Feeding Height (mm) 1400
Weight (kg) 960
Compaction Ratio up to 9:1
Results of compaction achieved:
Cardboard /paper(kg) 450
Plastic Foils (kg) 200
Styropor (EPS) (kg) 80
General Refuse (kg) 1000
Bale Volume (litres) 1400
Bale Dimensions (mm) 1100 x 1100 x 1200
Feed Opening (mm) 1090 x 670
Noise Level dB 59 according to DIN 5045 with 1 metre distance
