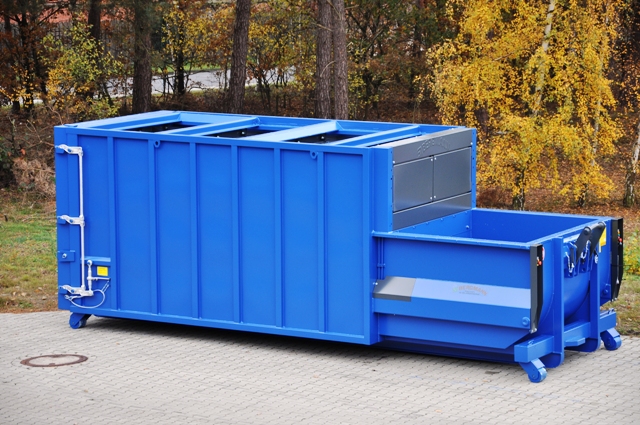

Bergmann APB 606

Bergmann designs machines with effective compaction, easy handling and low maintenance costs, with attention focused on long lasting and robust design. Many machines have a lifetime of more than 20 years. Bergmann Alpha Pack Bins (APB) are characterised by very high compaction results due to the linear position of the press cylinder and the continuous feeding in a large, easy to feed loading aperture.

These APB compactors are highly efficient in compacting paper, cardboard packaging, plastics and other dry materials, including refuse with the APB 606 SN/20 compacting approximately 4.5 tonnes of cardboard and 6.5 tonnes of plastic.

Key features of the APB 606 waste baler

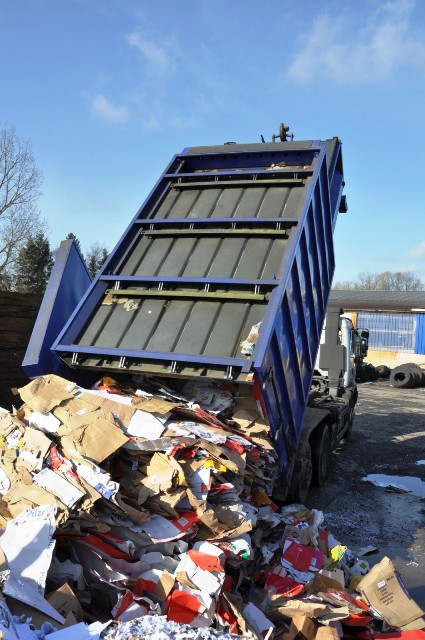

  • Pendulum roof   The APB 606 is equipped with a pendulum roof that has been especially developed to assist the emptying process. The free hanging roof gives additional space for the material when the container is tipped and so any clamping of the material can be avoided.
  • Galvanized fittings   It’s important that moving and highly used parts are robust and so Bergmann designs machines with fittings that are weatherproofed by being galvanized.
  • Linear compaction  The linear direction of the hydraulic cylinders effects a 100% transmission of power on the compaction material and therefore achieves highest compaction results. In comparison to a cross-cylinder compactor, the APB 606 gives a 20-25% advantage. The Bergmann principle with the overthrow blade compacts cardboard and reuse material very efficiently. Cleaning work underneath the compaction blade is not necessary due to self cleaning equipment and because of this there are no cleaning costs. Additionally, the full volume of the compaction chamber is available in every step of the compaction cycle which is also different to cross-cylinder models.
  • Self cleaning press piston Conventional compaction systems of portable compactors need regular cleaning. If this weekly 15-20 minute work is not done regularly, it can result in high expensive repair costs.

Standard features include a high capacity compaction chamber with a pendulum roof ensuring easy emptying, rollers and hooks on the front and rear, and a compaction chamber of 1700mm x 2000mm.

A range of accessories are available when ordered with the machine including:  high side walls, hydraulic 75% and 100% full signals, lockable covers over the control panel, together with pinion and comb lift bin lifts and bin lid openers, guide rails and a double pump, plus special RAL paint.

There are four models in the range: SN14, SN18, SN20 and SN23.

Bergmann APB Waste Compactor in action:



Bergmann Portable Compactors are available in a wide range of sizes. Just contact us to discuss your exact requirements.  Integrated Bin Lifts are also available.

Bergmann APB Bin Lift in action:

Container capacity ranges from 14-20m³.  One of our most popular machines is the Bergmann APB 606 SN/20

For further details on this or any other Waste Compactorsplease contact us

Technical Information

  • Huge loading aperture (approx. 1,700 x 2,000 mm) with a volume of 4.5 m³
  • Enormously high processing capacity of 2.00 m³ per working stroke
  • Bin with pendulum roof for trouble-free emptying
  • High compaction force of 345 kN with APB 606 SN 20
  • Press plate guiding system with 100% compaction force over the full stroke length
  • High filling weights of, on the average 4.5 tons cardboard boxes in the APB 606 SN 20 and more
  • Compactor stroke in only 36 seconds
  • Durable, purely hydraulic drive unit with maintenance-free central hydraulic block
  • Compaction chamber and press plate constructed from extremely high steel strengths. Bottom of the loading aperture made of high-quality and wear-resistant steel
  • Front and rear pick-up hook variable in height for adjustment to all standard roll-off skip loaders
  • Laterally fastened door with 3 central locks via easy-to-serve ratchet catch
  • Pendulum claws on the break edge and the large immersion depth of the compacting piston avoid that the waste streams back
  • Easily accessible hydraulic power pack above the compaction chamber through wing doors
  • Great stability with economic net weight
  • Machine TÜV/GS and CE-certified
  • Skirting protection of the control elements for protection against damages
  • Container is continously welded
  • Circulation of the material due to special circulation edges at the discharge opening results in a high volume utilisation of the container
  • Completely “Made in Germany” by qualified and experienced staff

Technical Summary

Model Bergmann APB 606 SN/20
Net volume (m³) 20.3
Length (mm) 6,690
Machine width (mm) 2,500
Machine height (mm) 2,560
Net weight (kg) 5,150
Loading aperture height, width, length (mm) 1,505 x 2,000 x 1,700
Maximum operating pressure (bar) 220
Loading aperture capacity (m³) 4.5
Motor power (kW) 5.5
Oil quantity (l) 60
Press capacity per cycle (m³) 2.02
Cycle time – forward/return cycle (s) 36/36 or 20/20 with double pump
Cylinder thrust (kN) 345
Electric supply 5.5kW/400V/50Hz
Clockwise phase sequence 25A surge proof CEE-Plug 32 Amp
Transport system Roll-on roll-off
