Waste Compactor Bin Lift

Compactor bin lifts are an ideal solution for easy loading of the machine and our range of Bergmann compactors can be supplied with an integrated bin lift if required when the compactor is being manufactured.  Alternatively, the Bergmann external  Bin Lift is ideal for safe and quick emptying of smaller bins into large open containers / skips and compactors.
The bin lift is particularly useful in situations where waste is produced in a number of locations and collected in standard bins, ready to be compacted in a central location.  A two handed operation ensures that the device is operated safely.

The standard option empties 660 and 1100 l bins to DIN standard including cover lid opener (EDV Code 862) with a lifting capacity of approximately 800kg.  Optionally, the bin lift can be fitted with comb lift tipping (EDV Code 864) for 800, 600, 350, 240, 120 & 80 l bins.

If you would like more information on these or any of our products Contact Us to discuss your exact requirements.

Compactor bin lifts are an ideal solution for easy loading of the machine and our range of Bergmann compactors can be supplied with an integrated bin lift if required when the compactor is being manufactured.  Alternatively, the Bergmann external  Bin Lift is ideal for safe and quick emptying of smaller bins into large open containers / skips and compactors.

The bin lift is particularly useful in situations where waste is produced in a number of locations and collected in standard bins, ready to be compacted in a central location.  A two handed operation ensures that the device is operated safely.

  • Secure and rapid emptying of small waste bins in containers or compaction boxes
  • Can be used everywhere, where, in several places in the plant, materials accumulate, which are first collected in standardised small containers and then introduced to a central place
  • Automatic lifting, opening of the cover and tipping of the container

Bin Lift Technical Details

The standard option empties 660 and 1100 l bins to DIN standard including cover lid opener with a lifting capacity of approximately 800 kg.  Optionally, the bin lift can be fitted with comb lift tipping for 800, 600, 350, 240, 120 & 80 l bins.

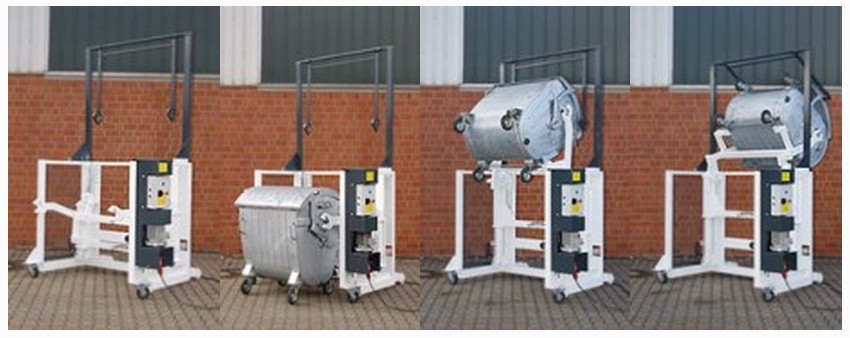

Bin lift operation

  • The Bergmann Bin Lift is connected to an existing electrical connection
  • The waste bin, with up to 1,100-liter volume is pushed into the pick-up device
  • The container is lifted hydraulically
  • The integrated optional lid opener restrains the swinging lid and ensures complete emptying

Standard equipment

  • Pivot take-up for 1,100 litre containers
  • Transport rollers
  • Safety cage
  • Two-hand control
  • Emergency-stop button



Technical Information

  • Suitable for emptying bins of up to 1,000 liters
  • Flexible application due to a special construction which can be adjusted to different containers with various pivot and comb heights
  • Movable by 4 heavy-duty rollers with stop brake
  • Optional comb lifting system
  • Lifting capacity approx. 700 kg
  • Security by two-hand control, safety guard and emergency stop button
  • Sturdy steel construction

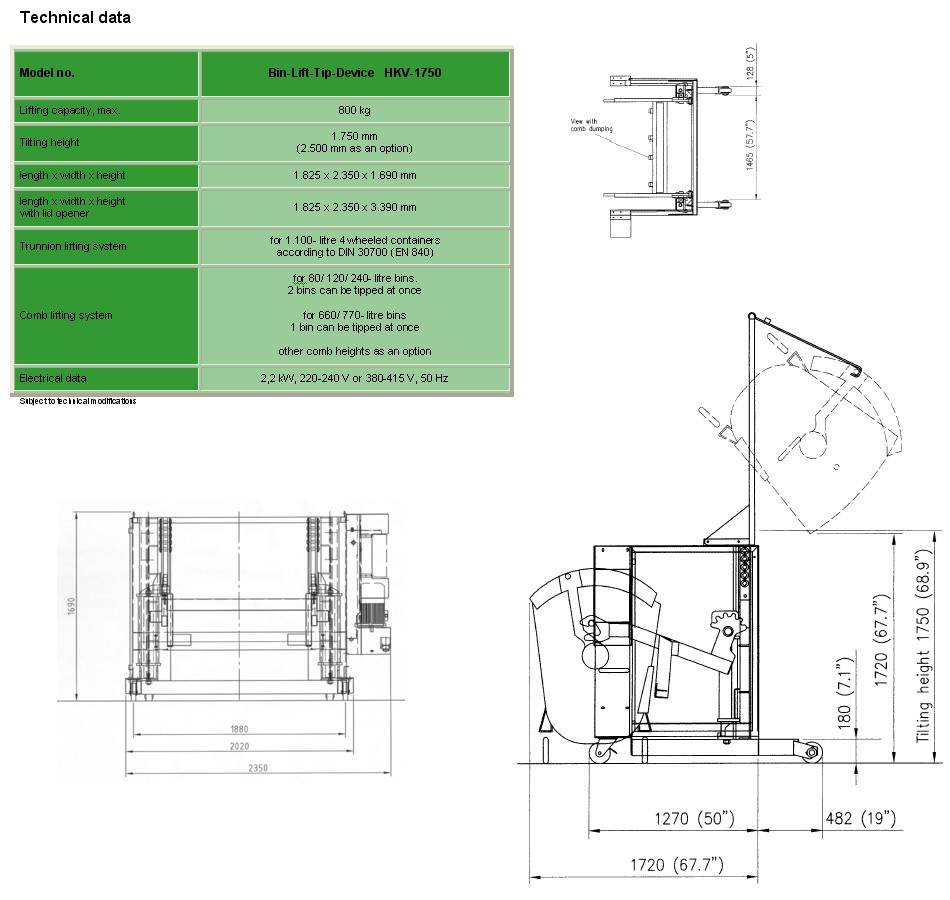

Technical Summary

Model Bergmann Bin Lift HKV 1750
Width x Depth x Height 2.085 x 1.753 x 3.389 mm (82,1" x 69" x 133,4")
Max. lifting capacity 800 kg
for pivot pick-up 1.100 litres roller bins as per DIN 30 700
Garbage bins for comb-lift (optional) 80/120/240 litres (18/26/53 galUK), comb-lift* each 2 bins can be tipped at once. 660/770 litres (145/169 galUK)
Electrical Data 2,2 kW (2,95 HP), 220–240/380-415 V/50Hz
Tilting Height 1.750 mm (2.500 mm*)
