Avermann SP16 Static Compactor

Avermann SP16 Static Compactor

The SP16 Static Compactor from Avermann has a charge box capacity of 1.3 cubic metres and a cycle time of 47 seconds. The Compactor will operate with containers from 8 cubic metres to 32 cubic metres, offering great flexibility.

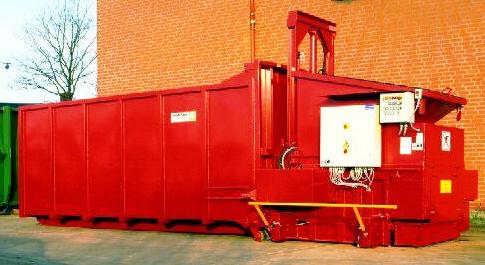

The Compactor can be configured with a range of optional extra equipment such as feed hoppers and bin lifts. The Compactor would often be housed on the outside of a building, with the material coming from inside the building and being fed directly into the hopper.

For further details on this or any other Avermann Compactors, please contact us.

Avermann SP16 Compactor

Technical Information

  • charge box capacity of 1.3 cubic metres
  • cycle time of 47 seconds
Model SP16
Machine length 3265 mm
Machine width 2076 mm
Machine height* 1618 mm
Feed-opening length* 1635 mm
Feed-opening width* 1350 mm
Feeding height* 1270 mm
Dead weight* 3300 kg
Oil quantity 140 l
Volume per stroke/rpm 1.3 m³
Cycle time (idle) 47 sec
Drive capacity 7.5 kW
Press force 380 kN
*without hopper
Electricity, Plug connector 3 x 400 V, N, PE/50 Hz CEE-5 x 32 A/6 h or direct connection
Fuse protection (on site) 32 A, slow; Control voltage: 24 V DC
