This roll on / roll off (hook lift) Portable Compactor from Avermann has a huge 20 cubic metre capacity with a charge box size of 1.3 cubic metres.
With a cycle time of just 43 seconds, this Compactor can compact large quantities of waste material quickly and efficiently. An enlarged feed-opening on these waste compactors is designed for feeding bulky materials.

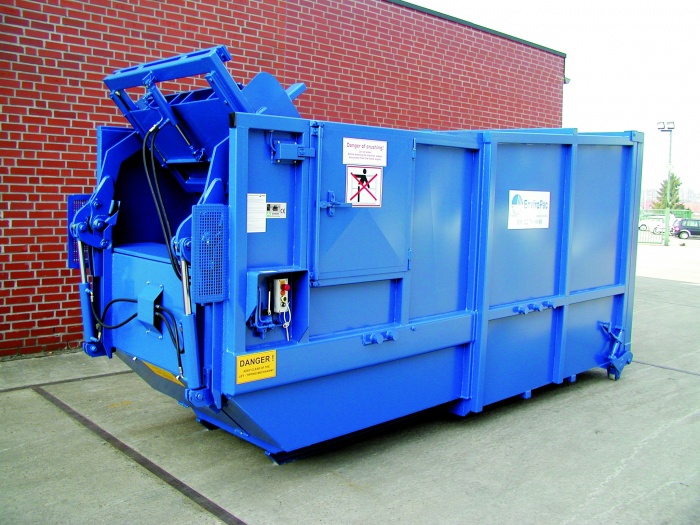

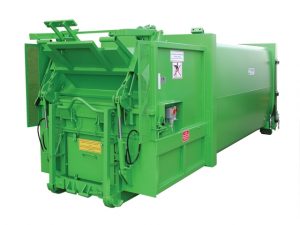

A range of optional extras are available, including integral bin lift, connection hoppers and weighing units. A feed opening cover is also available to prevent unauthorised filling. Integrated or attachable Bin Lifts are also available. These waste compactors can be fitted with a pendulum-style rear-door for removal of compacted materials, or can be laterally hinged.
|Model||MPC 20 P/E|
|Net capacity||20 m³|
|Machine length*||6450 mm|
|Machine width||2500 mm|
|Machine height||2550 mm|
|* with rear-hook: + 275 mm|
|Feed-opening length||1000 mm|
|Feed-opening width||1980 mm|
|Feeding height||1400 mm|
|Dead weight||4900 kg|
|Oil quantity||70 l|
|Capacity per drive stroke||1.3 m³|
|Cycle time (idle)||43 sec|
|Electric supply||3 x 400 V/50 Hz|
|Fuse protection on site||25A slow fuse|
|Externally mounted plug||CEE-5 x 32 A/6h|
|Transport system||Roll-on roll off trucks (hook lift)|
